DPQ Series Single-Shaft Card Paper Slitting Machine
Single-shaft | High Speed |600-1300mm
  • High Slitting Speed
  • Precise Cutting
  • Smooth Operation
  • User-Friendly
Technical Specifications
  • Substrate
    180-300gsm
  • Max unwind and rewind dia
    Φ1600mm
  • Max paper width
    600-1300mm
  • Min bobbin width
    20mm
  • Max slitting speed
    350m/min
Product Features

Single-shaft slitting for cigarette card paper rolls, kraft paper rolls, etc.

  • Profinet / EtherCAT control system: advanced PLC, servo driver & converter control;

  • User-fiendly HiM; Busbar power suppy, energy-saving and reliable.

  • Unwinding tension auto-controlled by floating rollers and frequency controlled  motors.

  • Winding speed : constant line speed auto-controlled by frequency controlled motors.

  • Pneumatic swing arm for roll loading/unloading at unwind and rewind station.

  • Remote diagnosis and maintenance service.

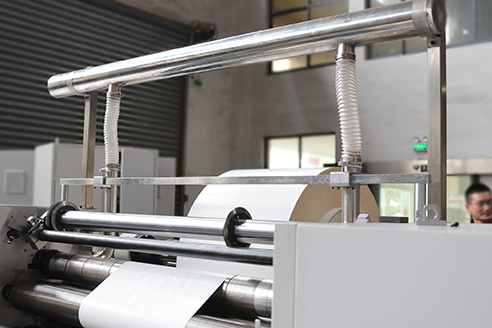

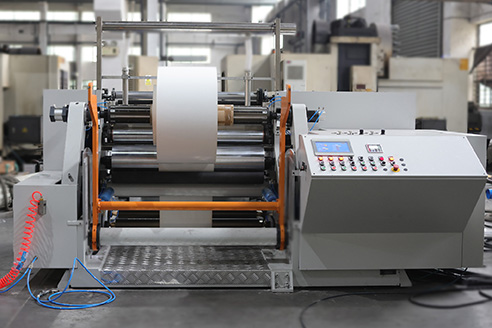

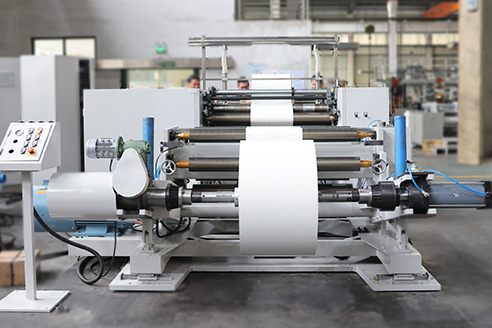

dpqk01.jpg    dpqk03.jpg    dpqk02.jpg
