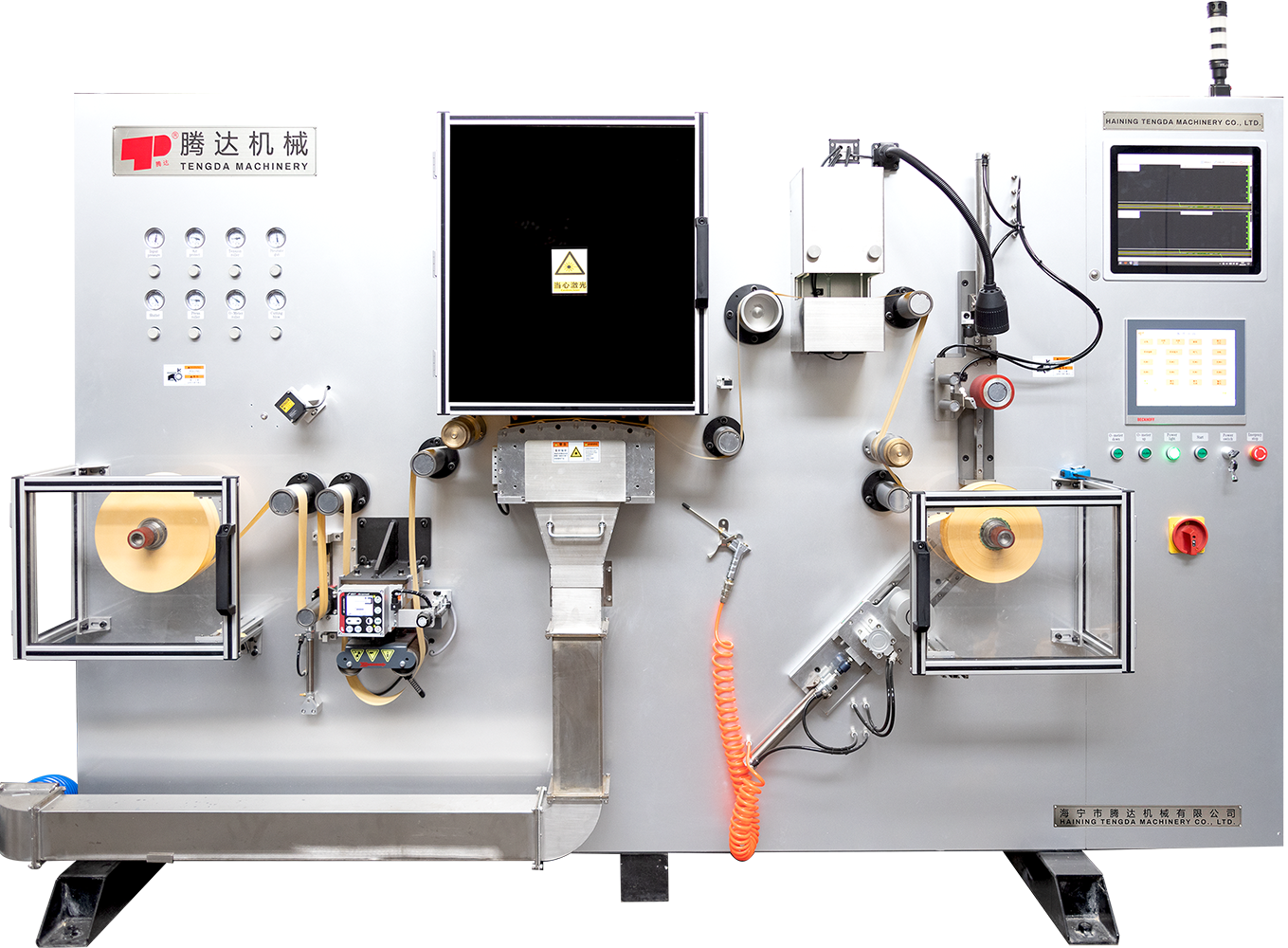

TDLB-D/8P Series Tipping Paper Laser Perforation Machine
TDLB-D450(650)/8P |High Speed |40-80mm
  • High-Speed Perforation
  • Automatic Splicing
  • Smooth Operation
  • User-Friendly
Technical Specifications
  • Substrate
    20-80gsm
  • Laser generator power
    100-650W
  • Stability
    <±2%
  • Frequency
    0-130Hz
  • Perforation rows
    2-8
  • Permeability instability
    < 6%
  • Permeability range
    100-2000cu
  • Max perforation density
    4pc/mm
  • Max paper speed
    600m/min
  • Bobbin width
    40-80mm
  • Max bobbin dia
    Ф520mm
Product Features

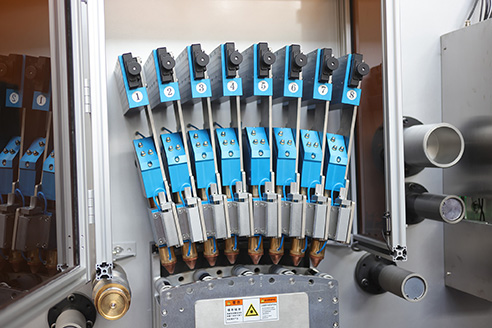

This high-performance laser perforation system is specifically designed for ventilation tipping paper on cigarette filter production lines. It enables precise perforation to facilitate filter ventilation and tar reduction, thereby minimizing health risks. The machine is customizable with multiple laser heads, features automated loading/unloading and splicing, and ensures stable 24/7 operation with a service life exceeding 10 years.

  • Components: laser generator, optical system, control system, paper feeding system, water-cooling unit, auxiliary functions(on-line monitoring, zero-meter mechanism, LPC, extractor fan, etc.)

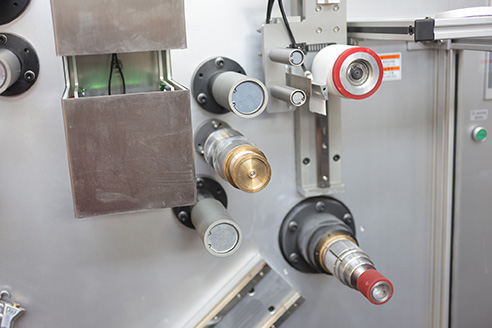

  • Paper feeding system controlled by German BECKHOFF servo system with BECKHOFF servo motor.

  • Automatic calculation of roll diameter, ensuring constant feeding speed and smooth bobbin surface.

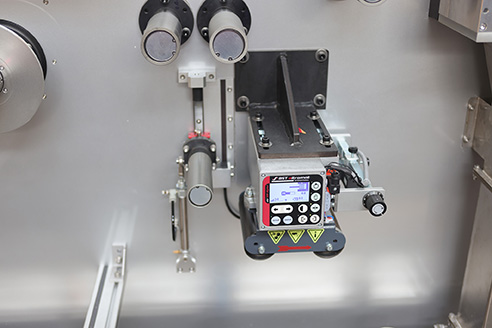

  • Full-automatic tension control system; Precise web guiding system (LPC system) from BST.

  • Online air permeability monitor



dkj01.jpg    dkj02.jpg    dkj03.jpg
