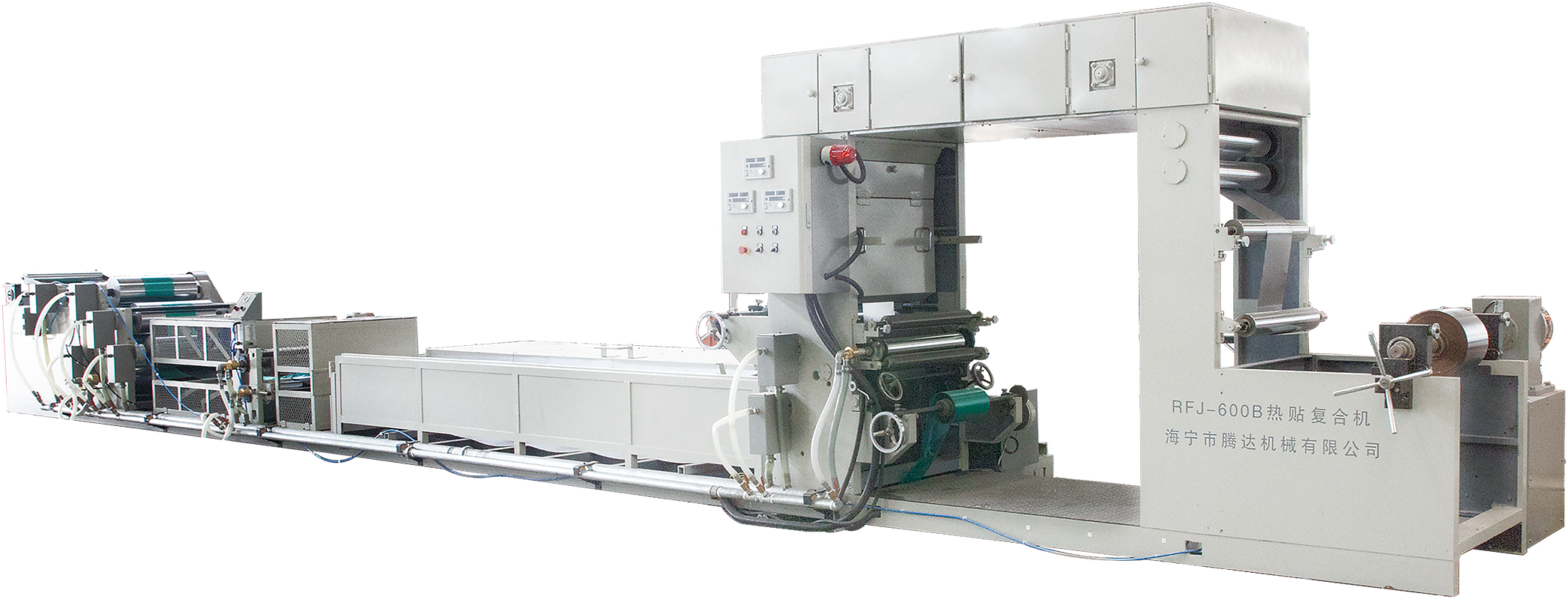

RFJ Series Hot Laminating Machine
For Cable Steel and Aluminum Strip | 500-1200mm
  • Precision Edge Planarity
  • Auto Tension
  • Smooth Operation
  • User-Friendly
Technical Specifications
  • Laminating layers
    3 layers (plastic-aluminum-plastic, plastic-steel-plastic)
  • Substrate thickness
    Steel Strip 0.15mm Aluminum Strip 0.28mm BOPP 0.05-0.06mm
  • Substrate width
    Steel Strip 400-1000mm Aluminum Strip 400-1200mm BOPP 400-1200mm
  • Max unwind dia for 1st
    Φ1600mm
  • Max unwind dia for 2nd
    Φ600mm
  • Max wind dia
    Φ1600mm
  • Max lamination width
    400-1200mm
  • Max lamination speed
    50-100m/min
  • Peel strength
    ≥7N/c㎡
  • Surface flatnes
    ±1.5mm
Product Features

This is a hot laminating machine suitable for producing laminated cable steel and aluminum strip.

  • Profinet/EtherCAT control system: PLC and converter controls; User-friendly HMI; Busbar power supply, energy-saving and reliable.

  • Automatic tension control at unwind&wind; Singe station/ double station as optional; hydraulic loading and unloading.

  • Preheating: electric or electromagnetic heating.

  • Heating with advanced high-frequency electromagnetic method.

  • Laminating with three-roll.

  • Air cooling + water cooling.

  • Remote diagnosis and maintenance service.
